SKU: 2213255

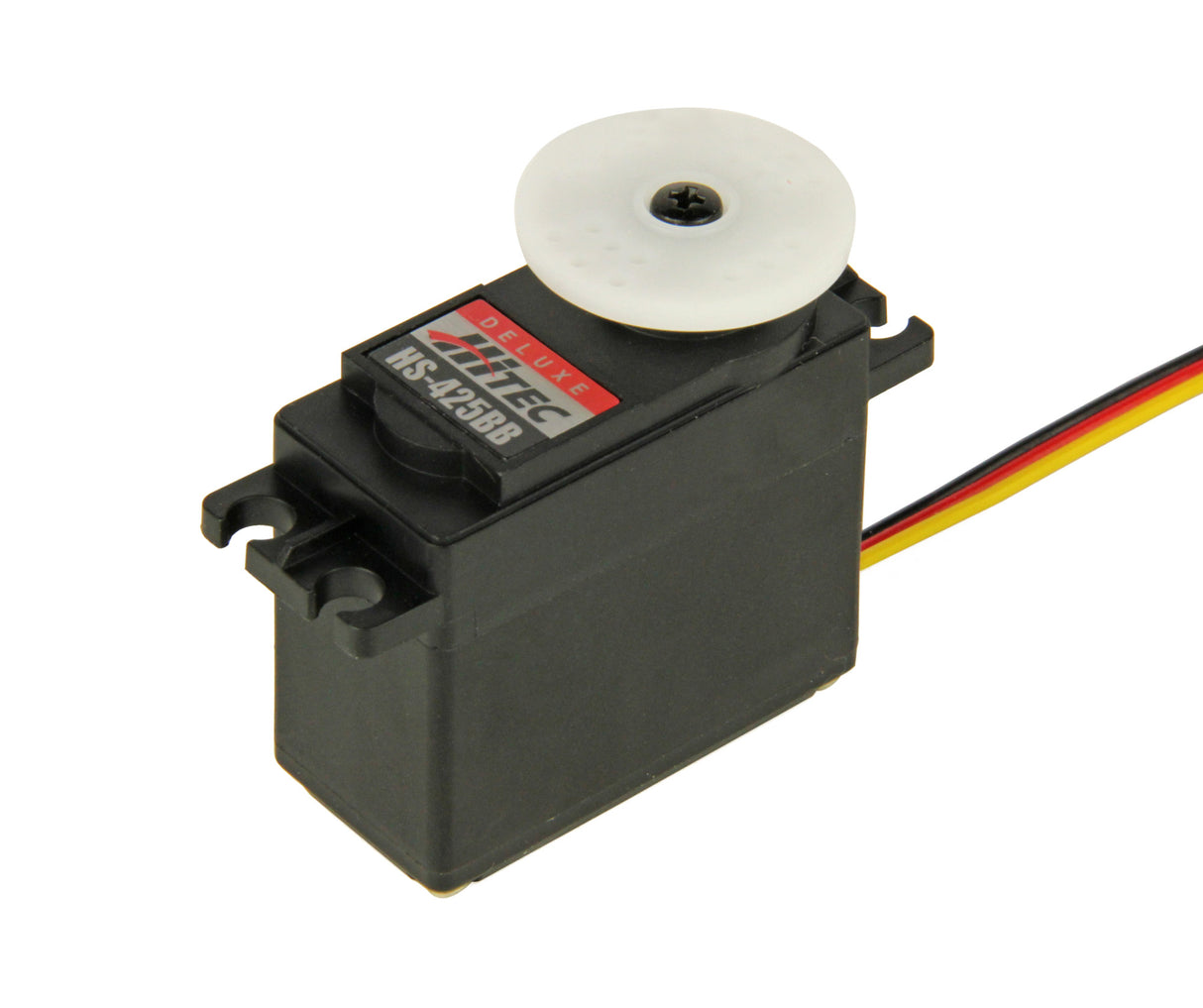

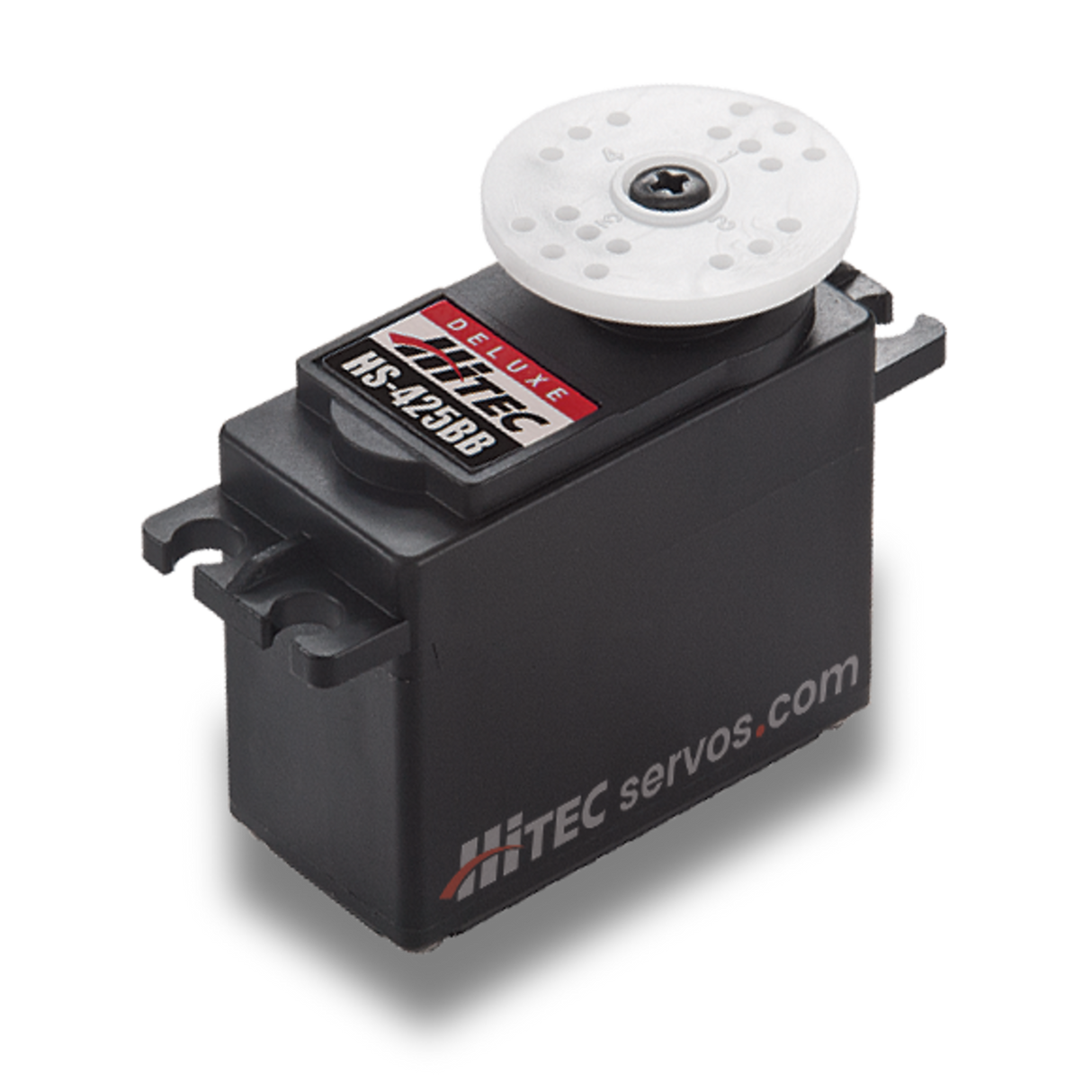

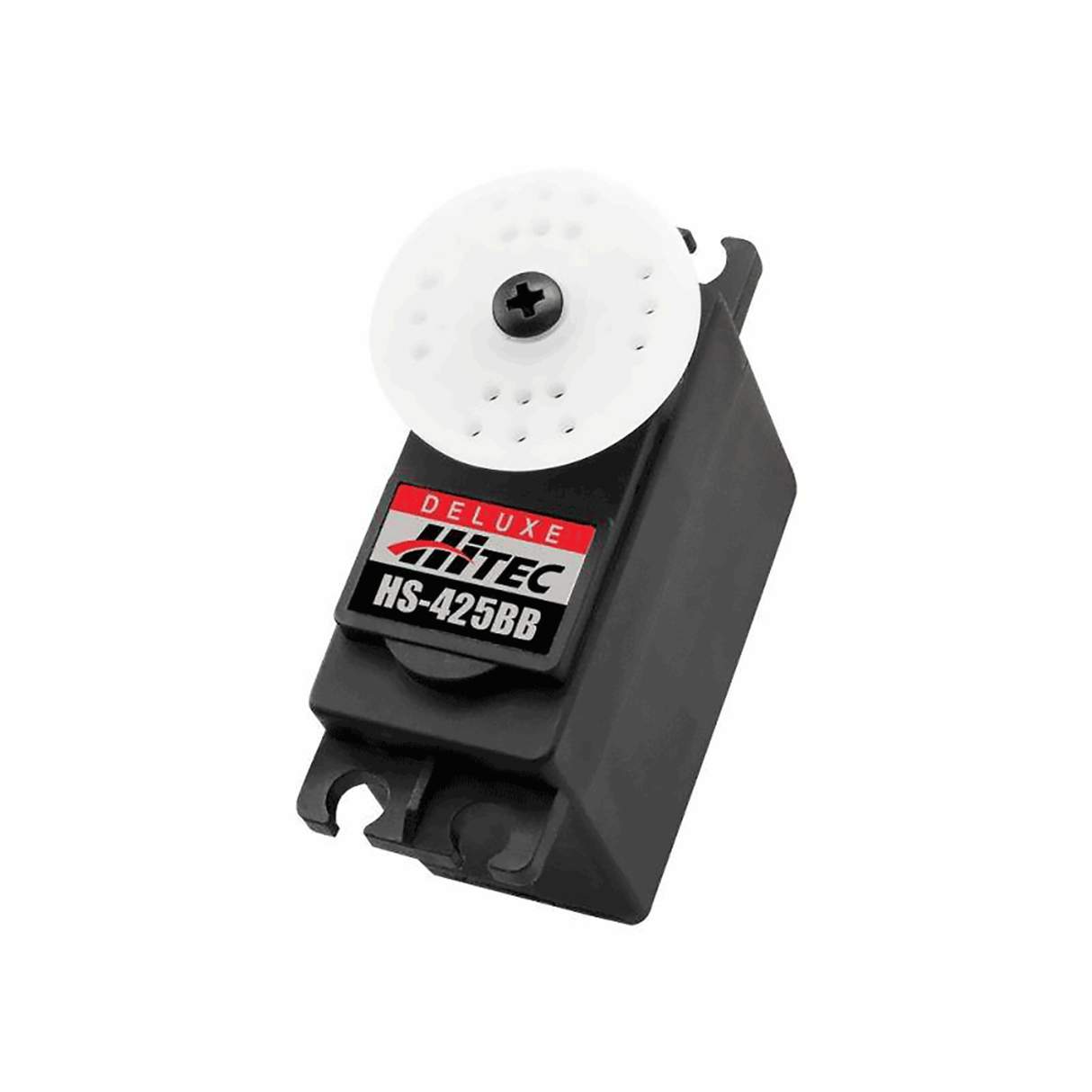

HS-425BB Standard Analogue Cored Servo 45.5g 4.1kg/0.16s 4.8V - 6.0V

Name: HS-425BB Standard Analogue Cored Servo 45.5g 4.1kg/0.16s 4.8V - 6.0V
Brand: Hitec
SKU: 2213255
Price: 16.5 GBP
Availability: InStock

Max Torque

4.1kg

Max Speed

0.16s

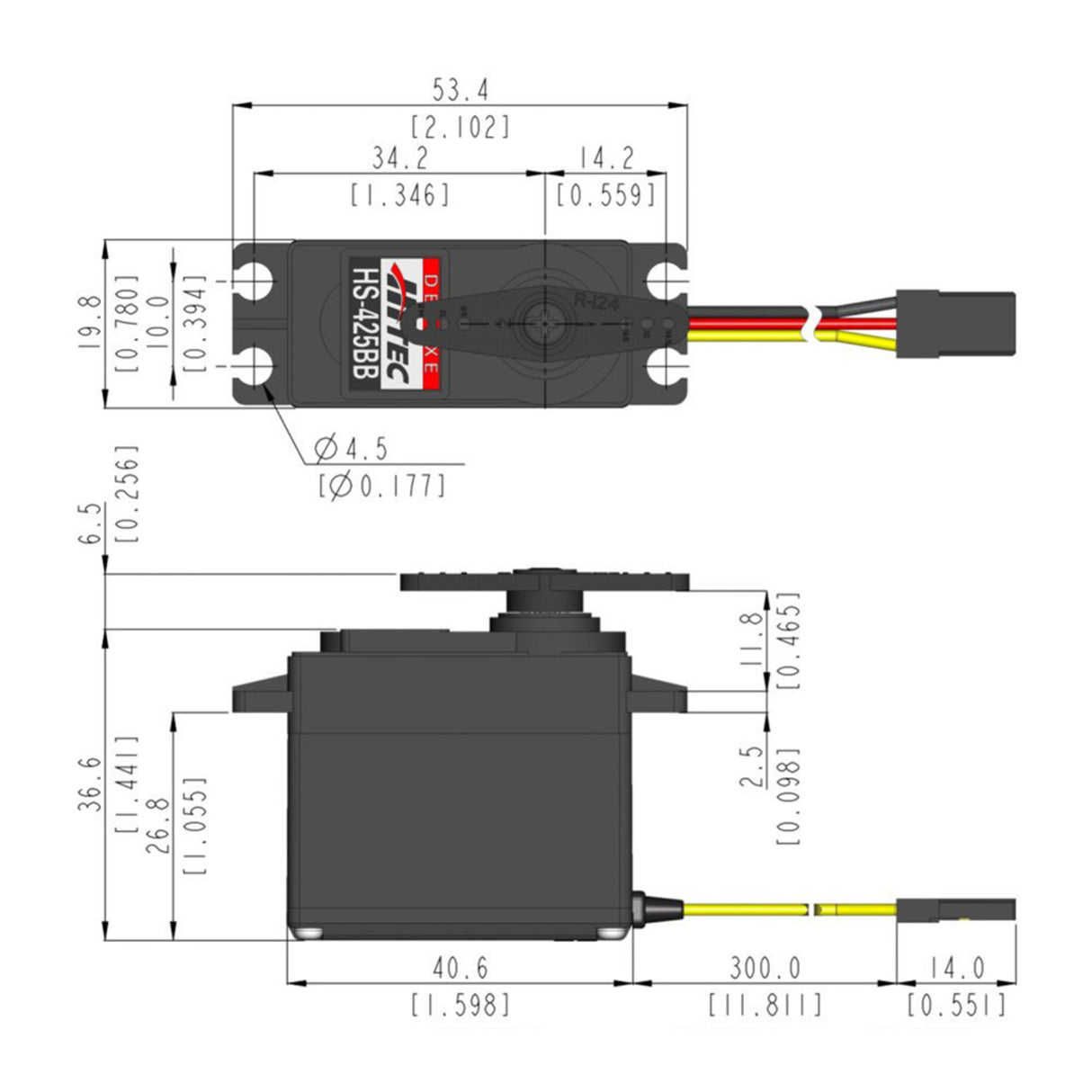

LxWxH

40.6×19.8×36.6mm

Weight

45.5 g

Voltage

4.8V - 6.0V

Gears

Nylon

Spline

24T (Ø6mm)

£16⁵⁰

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Hitec stockist on LoveLocal

Shipping

£7.50 - 2-day shipping to UK mainland

We only ship to UK and Ireland.

Explore more like this:

4.8V 6.0V Analogue Cored HS-Series PWM Servos Standard

HS-425BB

Series

Sport
Size

Standard
Dimensions

40.6×19.8×36.6mm
Command Protocol

PWM
Circuit

Analogue
Weight

45.5 g
Voltage Range

4.8V - 6.0V
Max Torque (kg/cm)

4.1
Max Speed (sec/60°)

0.16
Spline

24T (Ø6mm)
Motor

Cored
Gears

Nylon
Case

Engineering Plastic
Bearings

Dual Ball Bearing
Circuit Detail

HT7003 Analog SMT
Motor Detail

3 Pole Metal Brush Ferrite
Gear Detail

4x All POM Resin
Compatible Horns

Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
